A Lamp You Can’t Grow Out Of.
September 2024
Duration: 5 Weeks
Location: University of Cincinnati
Design Brief:
Design a battery-operated night light with a standard base and interchangeable characters as a child’s interests change.
Inspiration
Minimal and Abstract: a defined base form that, with added features, can become any animal or character.
Exploration
Defining form and features.
The Form: pill-shaped lamps that can conform to any character. Experimentation with defined necklines, curve steepness leading into the head area, and silhouette.
The Features: developing potential characters, eye shape, base/leg styles, and the silhouette of the base “light puck.”
Final Breakdown: sketching through each piece of the lamp and their connection points.
Prototypes
Cardboard Models - defining scale and shape, as well as three distinct pieces (light puck, lamp legs, and lamp body)
3D Print (1) - combining light puck into the base of the lamp rather than two separate pieces, establishing form and interchangeable feature
3D Print (2) - simplifying animal features, modifying tolerances for snap-fit pieces
High Fidelity Model Analysis
Breaking down the design for refinement
Feedback:
(provided by 25 University of Cincinnati Industrial Design students)
Reorient Eye Placement
Seal the base so light can’t get through
Use a more saturated color palette for characters
Finish the end of the trunk with filleted corners (elephant-specific)
Use warm light to reduce harsh tones
CAD Refinement
The final modifications
Increased wall thickness and part tolerances to block light
Twistable battery cover
Updated, snap-fit battery holder with designated light bulb slot
Modified button for increased accuracy
Modifications:
Interchangeable Lamp Tops
Minimal, Abstracted Animal Detailing
“Go to Sleep” Eyes Engage User
Hidden, Easy-Access Push Button
Warm, Diffused Light
Refined Model:

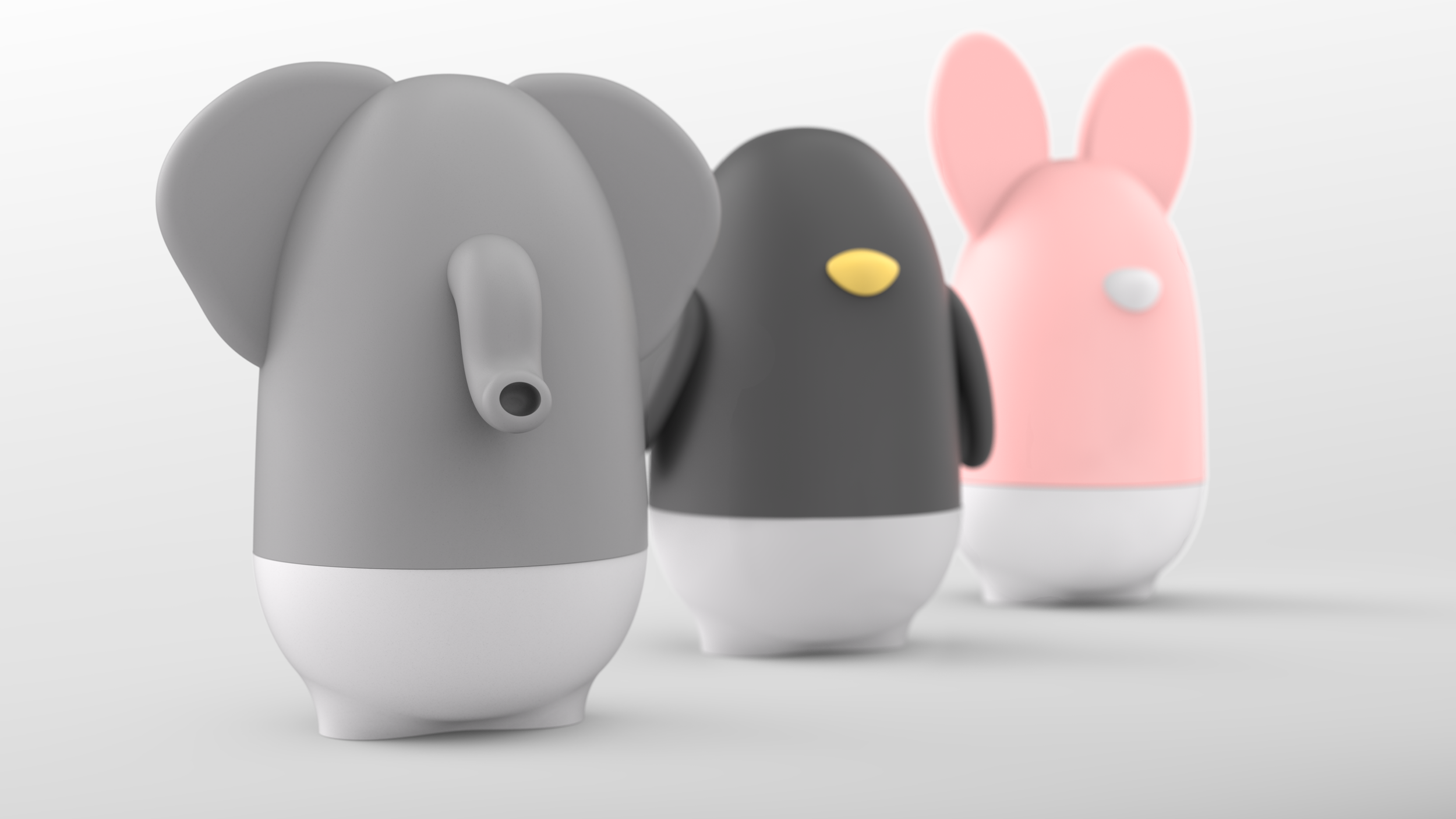

The Night Light Pals
Interchangeable Characters for Every Room and Interest.
One Size Fits All
The Internals:
Twist-and-Click Battery Cover
Two AA Batteries
Snap-Fit Battery Holder
LED (Threaded Through Battery Holder + Cover)
Push Button and Button Cap
Base Module
Any compatible Night Light Pal can snap onto the base.
